Desk signage · DK14
14" Desk Tablet
A whiteboard on a stand. Registration desks, the charge nurse, and rounding from a fixed spot.
Pricing comes from the HCI partner who covers your state. Sold and installed through dealers and integrators.
Size13.3 inch LCD (sold as 14 inch, to confirm)
Resolution1920 x 1080
Camera5 MP
Where it goes
Built for one place in the building.
Desk or counter
Nurse station
What runs on it
The same platform as every other screen.
Every HCI device runs HCI ONE and is enrolled in Engine at install, so it takes the same release, on the same day, as the rest of the building.
Builds
Same panel. Different engine.
Most hospitals run Standard. Pro is for camera heavy rooms and for Guardian.
| Build | Processor | Memory and storage | Android |
| Standard | Quad core Cortex A55 (RK3566) | 2 GB RAM, 16 GB storage (4 GB and 32 GB optional) | Android 11 |
| Plus | Quad core Cortex A55 (RK3568) | 2 GB RAM, 16 GB storage (4 GB and 32 GB optional) | Android 11 |
Specifications
Every number on the sheet.
| Display | |
| Diagonal | 13.3 inch LCD (sold as 14 inch, to confirm) |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 |
| Brightness | 250 nits |
| Contrast | 800:1 |
| Touch | 10 point capacitive |
| Physical | |

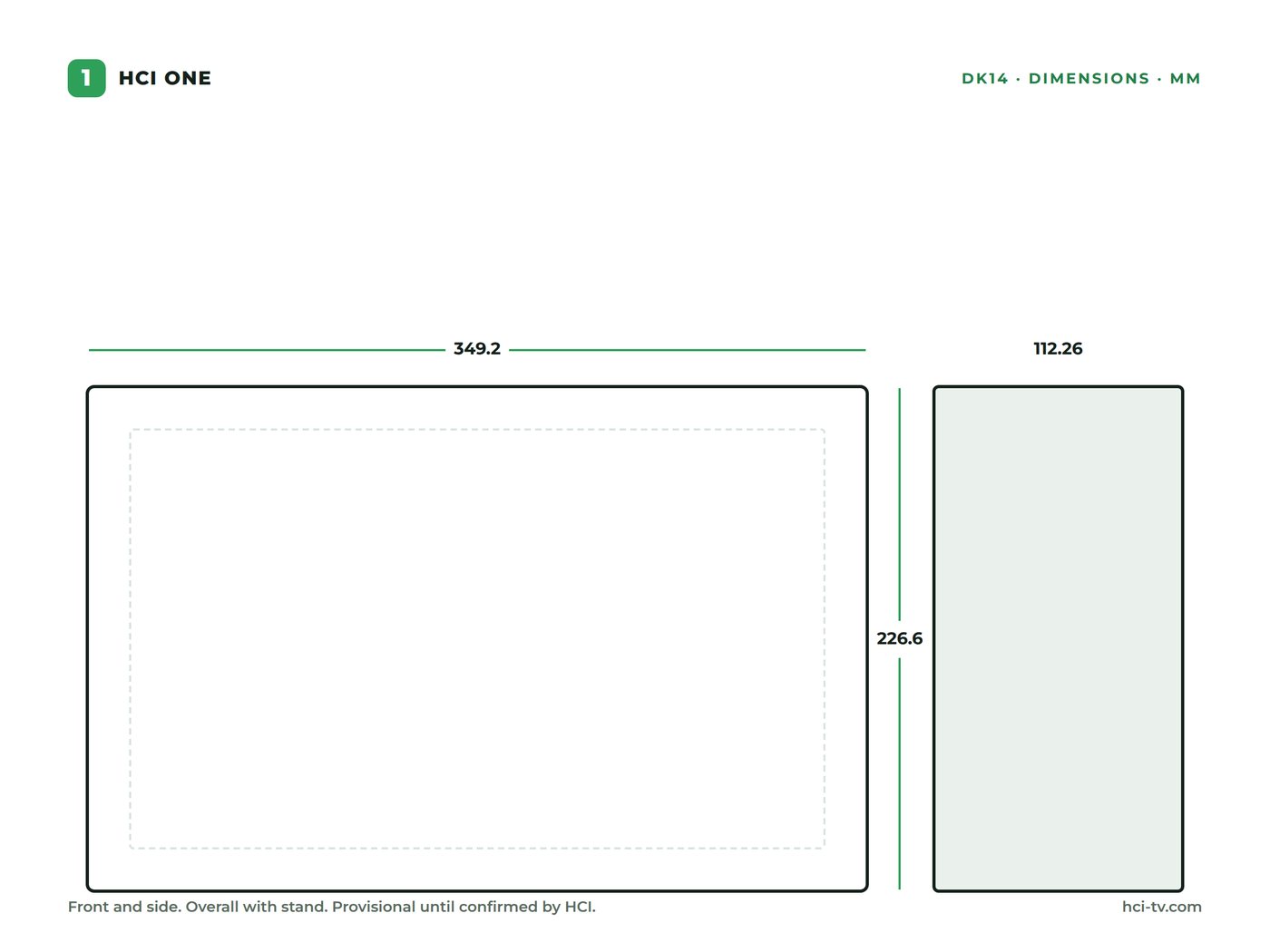

| Dimensions | 349.2 x 226.6 x 112.26 mm with stand |
| Stand | Integrated desk stand |
| Color | White |
| Battery | Optional 4500 mAh |
| Connectivity | |
| WiFi | 802.11 b/g/n or a/b/g/n/ac by build |
| USB | USB 2.0 or 3.0 host; serial |
| HDMI | HDMI out, 4K |
| Power | DC input |
| Audio and video | |
| Camera | 5 MP |
| Speakers | 1 W x 2 |
| Microphone | Single |
| NFC | Optional, 13.56 MHz |
| Environment | |
| Operating temperature | 0 to 40 C |
| Certifications | CE, FCC |
For IT and biomed
What it needs from your network.
- WiFi or a drop at the desk.
- Power at the desk.
- Enrolled in Engine at install.
More in desk signage
The rest of the family.
See it running on sample data.
Four screens, one demo. Or tell us your unit and your bed count, and we build yours.
