Desk signage · DK15
15" Desk Display
Full HD on an L stand. A charge nurse board on the counter, or Command for a small pod.
Pricing comes from the HCI partner who covers your state. Sold and installed through dealers and integrators.
Size15.6 inch LCD
Resolution1920 x 1080
Camera5 MP
Where it goes
Built for one place in the building.
Desk or counter
Nurse station
What runs on it
The same platform as every other screen.
Every HCI device runs HCI ONE and is enrolled in Engine at install, so it takes the same release, on the same day, as the rest of the building.
Builds
Same panel. Different engine.
Most hospitals run Standard. Pro is for camera heavy rooms and for Guardian.
| Build | Processor | Memory and storage | Android |
| Standard | Quad core Cortex A55 (RK3566) | 2 GB RAM, 16 GB storage (4 GB and 32 GB optional) | Android 11 |
| Plus | Quad core Cortex A55 (RK3568) | 2 GB RAM, 16 GB storage (4 GB and 32 GB optional) | Android 11 |
Specifications
Every number on the sheet.
| Display | |
| Diagonal | 15.6 inch LCD |
| Resolution | 1920 x 1080 |
| Brightness | 250 nits |
| Contrast | 800:1 |
| Touch | 10 point |
| Physical | |

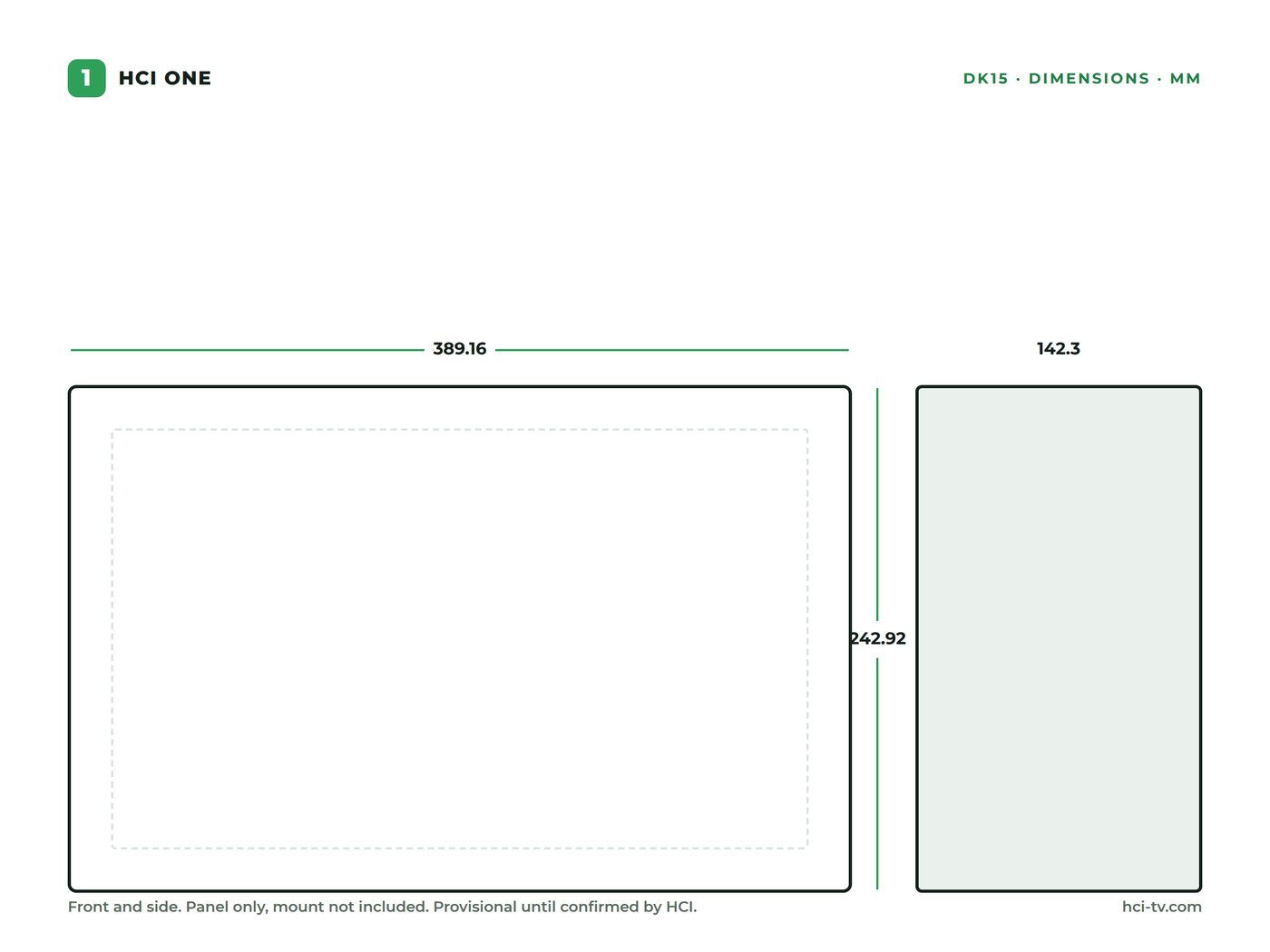

| Dimensions | 389.16 x 242.92 x 142.3 mm with stand |
| Stand | Integrated L stand |
| Battery | Optional 4500 mAh |
| Connectivity | |
| WiFi | 802.11 b/g/n or a/b/g/n/ac by build |
| USB | USB 2.0 or 3.0 host; serial |
| HDMI | HDMI out, 4K |
| Power | DC input |
| Audio and video | |
| Camera | 5 MP |
| Speakers | 2 W x 2 |
| Microphone | Single |
| NFC | Optional |
| Environment | |
| Operating temperature | 0 to 40 C |
| Certifications | CE, FCC |
For IT and biomed
What it needs from your network.
- WiFi or a drop at the desk.
- Enrolled in Engine at install.
