Desk signage · DK8
8" Desk Display
A portrait counter screen for check in, a queue, or a survey at the desk.
Pricing comes from the HCI partner who covers your state. Sold and installed through dealers and integrators.
Size8 inch LCD, portrait
Resolution800 x 1280
NetworkEthernet and WiFi
Camera5 MP
Where it goes
Built for one place in the building.
Desk or counter
What runs on it
The same platform as every other screen.
Every HCI device runs HCI ONE and is enrolled in Engine at install, so it takes the same release, on the same day, as the rest of the building.
Builds
Same panel. Different engine.
Most hospitals run Standard. Pro is for camera heavy rooms and for Guardian.
| Build | Processor | Memory and storage | Android |
| Standard | Quad core Cortex A55 (RK3566) | 2 GB RAM, 16 GB storage | Android 11 |
| Plus | Quad core Cortex A55 (RK3568) | 2 GB RAM, 16 GB storage | Android 11 |
Specifications
Every number on the sheet.
| Display | |
| Diagonal | 8 inch LCD, portrait |
| Resolution | 800 x 1280 |
| Brightness | 250 nits |
| Contrast | 800:1 |
| Touch | 5 point |
| Physical | |

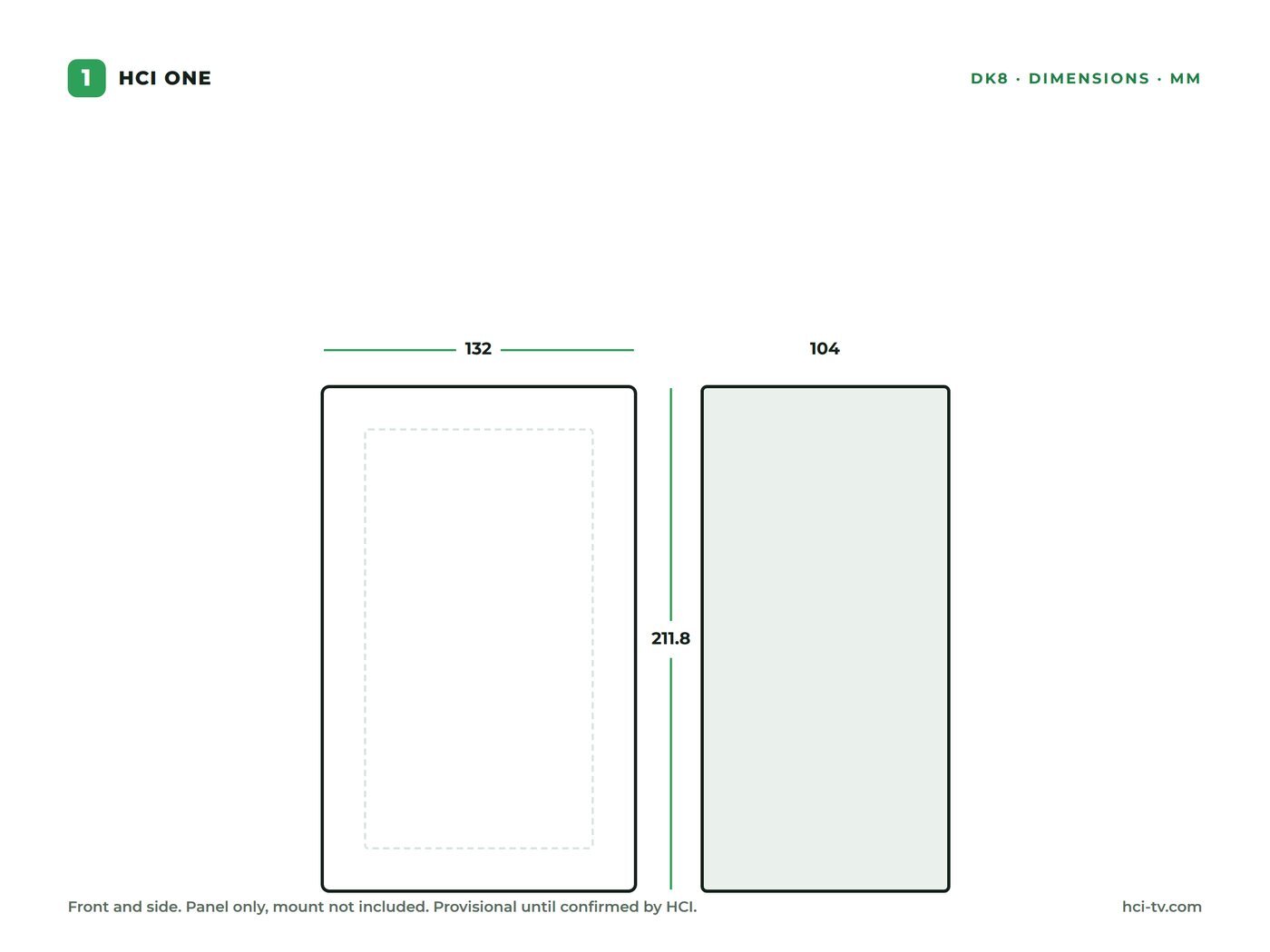

| Dimensions | 132 x 211.8 x 104 mm with stand |
| Stand | Integrated |
| Color | Black |
| Connectivity | |
| Ethernet | RJ45 |
| WiFi | 802.11 b/g/n or a/b/g/n/ac by build |
| USB | USB host; serial; USB C |
| Audio | 3.5 mm |
| Power | DC input |
| Audio and video | |
| Camera | 5 MP |
| Speakers | 2 W x 2 |
| Microphone | Single |
| NFC | Optional |
| Environment | |
| Operating temperature | 0 to 40 C |
| Certifications | CE, FCC |
For IT and biomed
What it needs from your network.
- WiFi or a drop at the desk.
- Enrolled in Engine at install.
