RenderingFloat Sidebar for Lenovo Tab K9

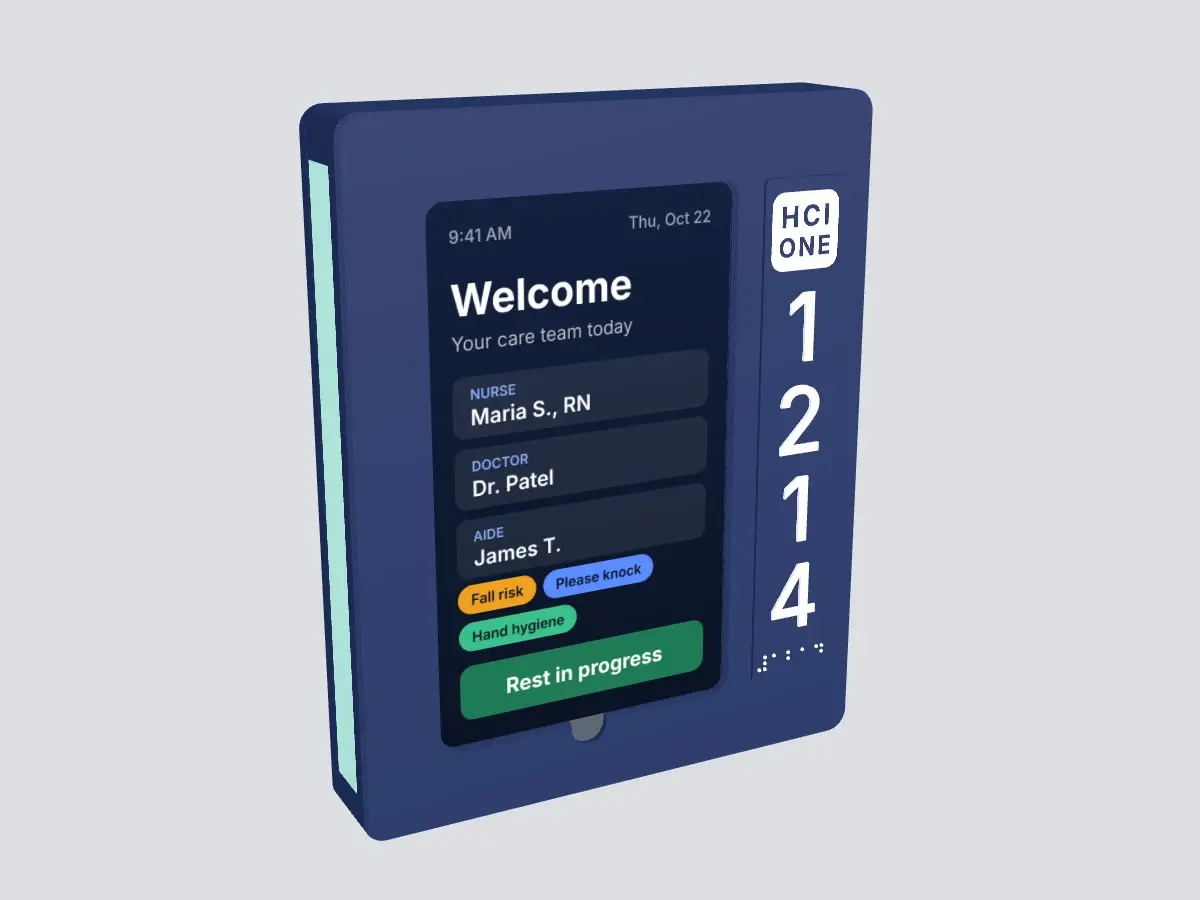

An 8.7 inch Lenovo Tab K9 becomes the door sign. The enclosure hides the tablet's own bezel, the room plate carries raised numerals and braille, and clear light strips in both side walls wash the wall beside the sign.
Same enclosure either way. The version sets where the room number goes.
Quote now. We confirm the build with you at quote. Pricing comes from the HCI partner who covers your state. Room plates are printed per room from your room list.
Read the room from down the hall.
Clear strips printed into both side walls carry the light. The HCI ONE server sets the color from the same nurse call and location feeds that run the rest of the room.

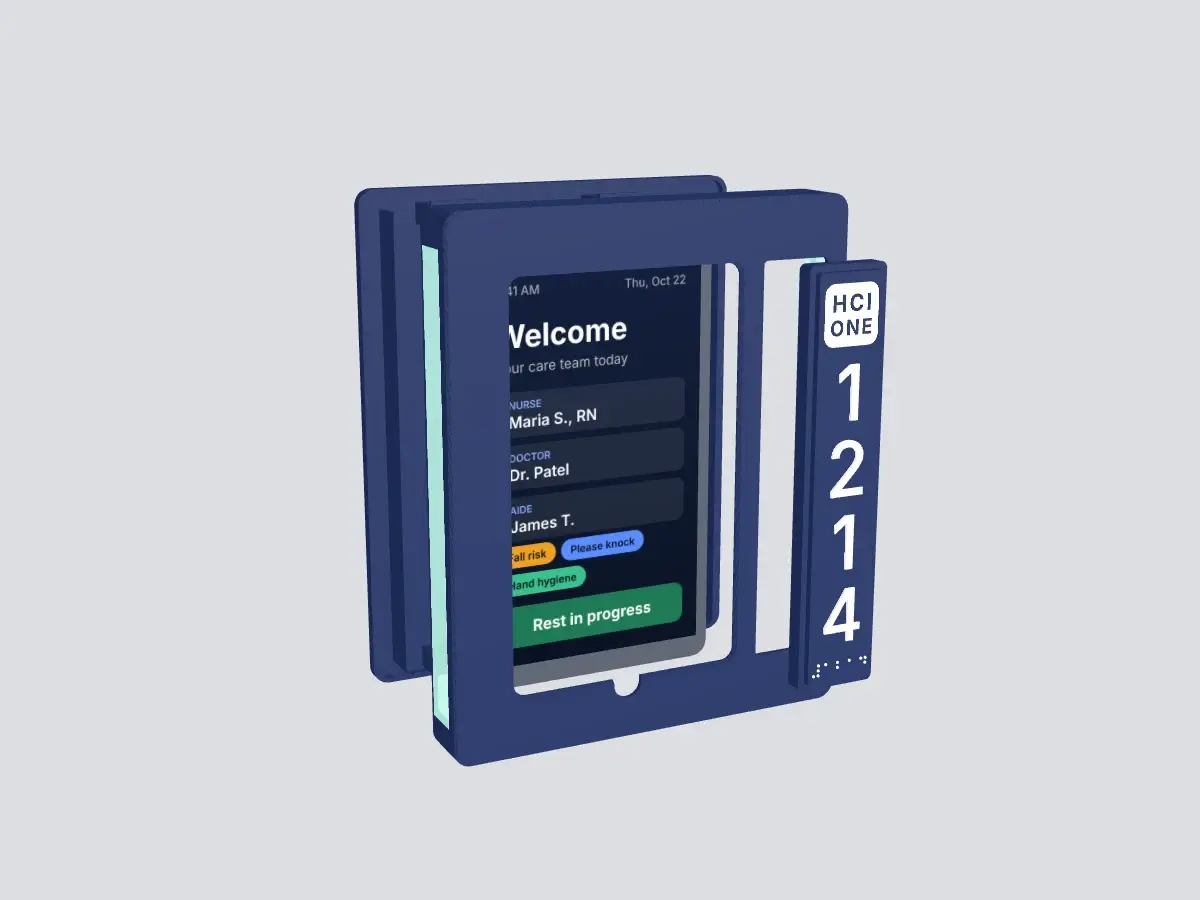

Four parts. One screw.

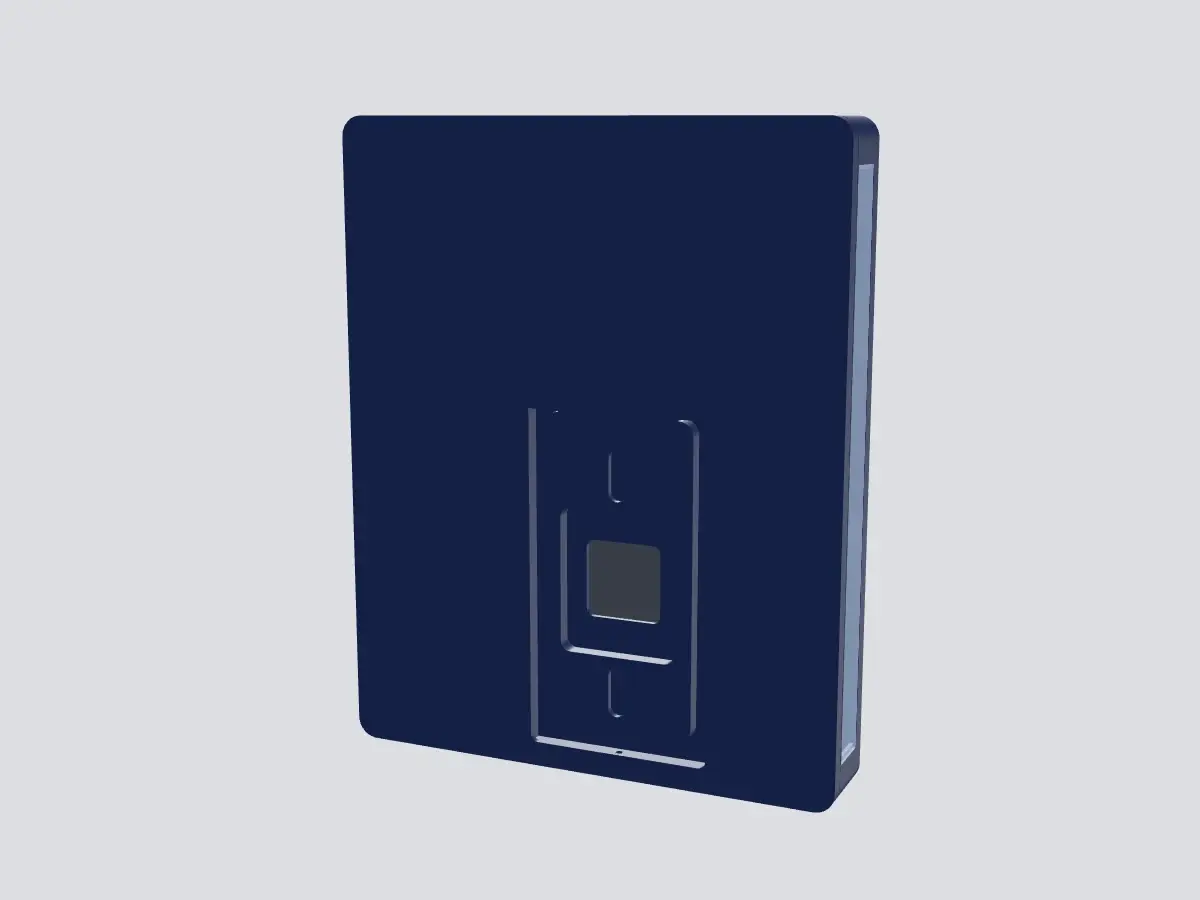

- Back housingPrinted back with the light controller and the PoE splitter inside. Clear strips run down both side walls. It hangs on a hanger plate on the single gang box.
- Lenovo Tab K9Portrait, with the USB C port at the top and the camera at the bottom. A right angle plug tucks up into a pocket behind the plate.
- BezelOne printed piece. The window matches the display, so none of the tablet's black bezel shows. One security screw from below locks the sign to the wall.
- Room plateRaised 1 inch numerals with Grade 2 braille below. Plates swap without reprinting the bezel.
Two layouts. The same tablet.

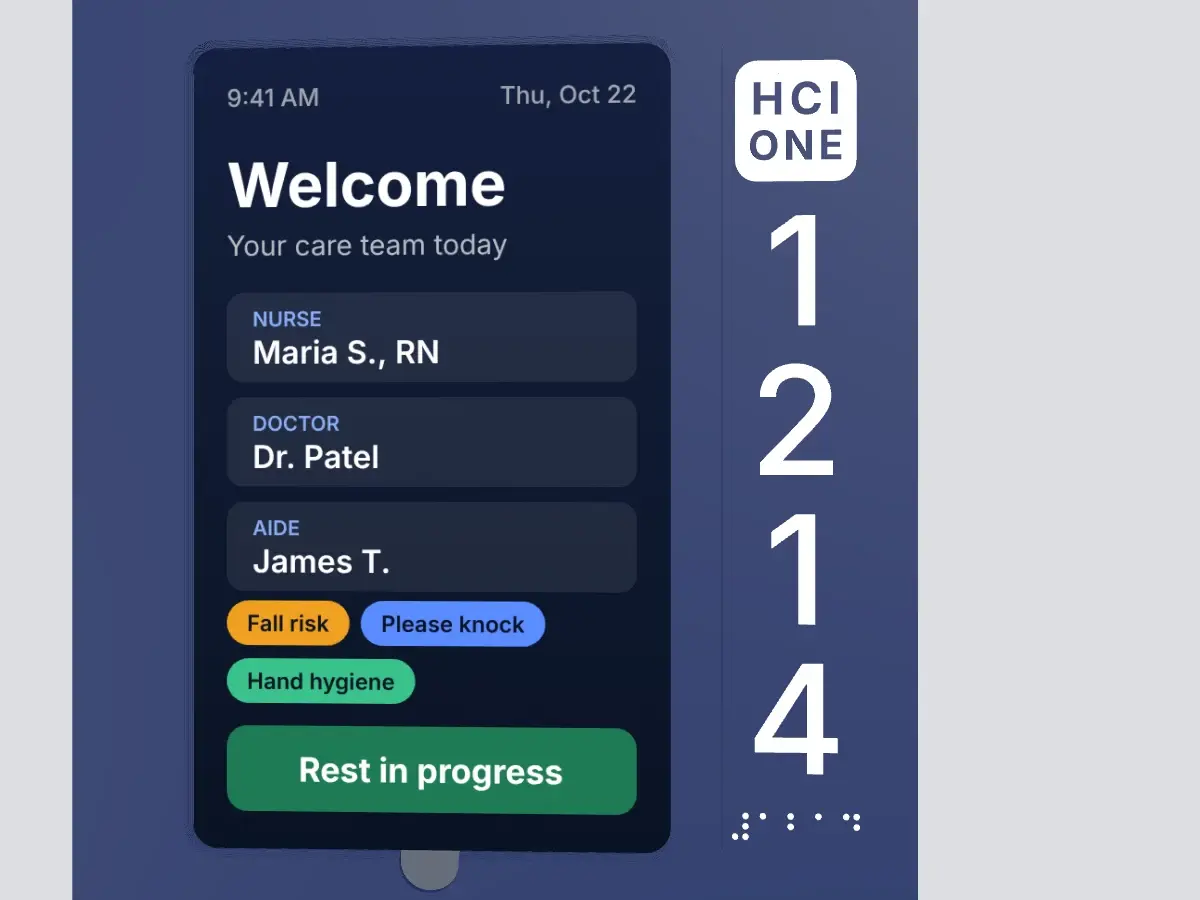

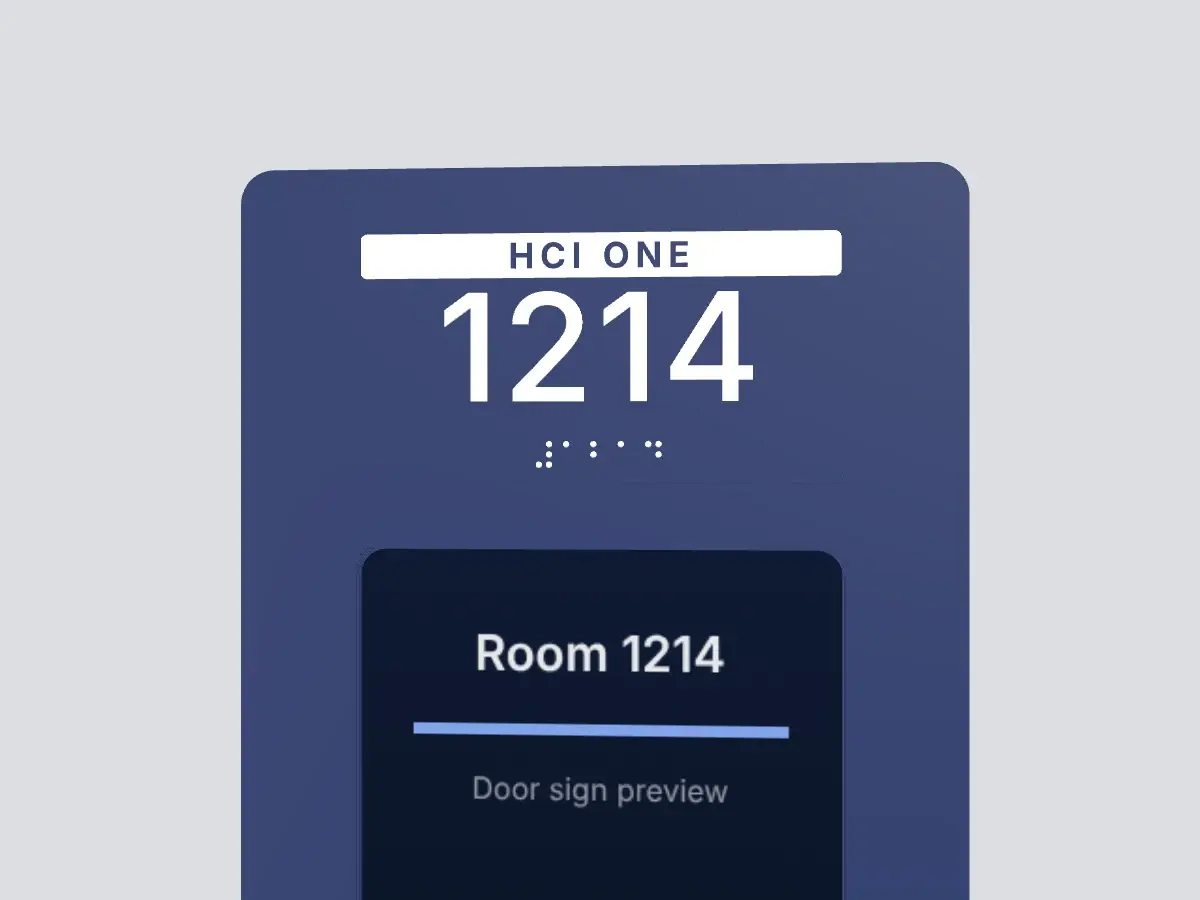

Numerals and braille are raised 1 mm. Choose the number in a column beside the tablet, or on a plate above it. The HCI ONE mark is flush, so fingers find only the number and the braille.

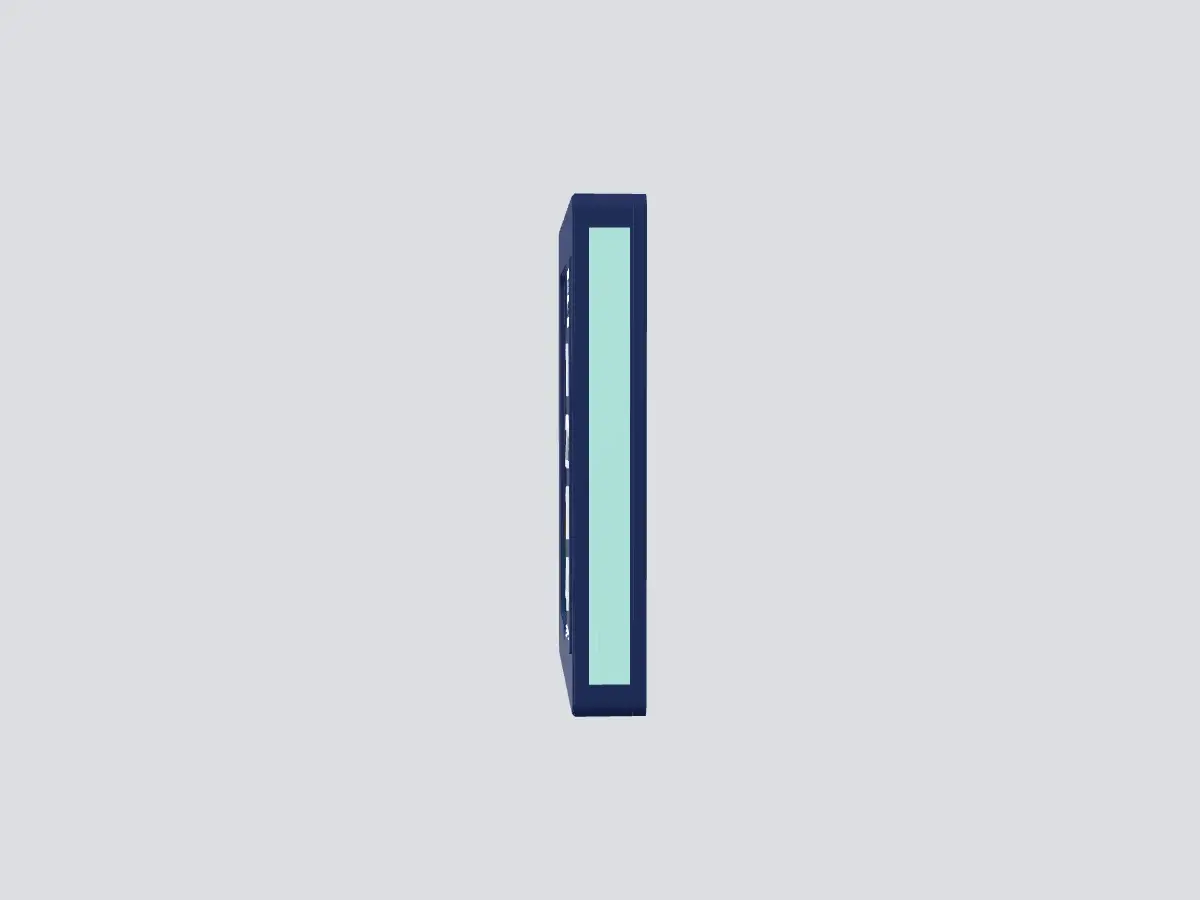

Flush to the wall. Light down both sides.
Every number we can state today.
| Number on side | 199.7 x 247.8 x 28.6 mm |
| Number on top | 171.4 x 293.2 x 28.6 mm |
| Window | 113.3 x 189.7 mm, matched to the display |
| Material | Printed in navy, clear strips in the side walls |
| Made by | Designed and printed by HCI in Cincinnati |
| For | Lenovo Tab K9, 8.7 inch |
| Resolution | 1340 x 800 |
| Tablet size | 211.0 x 124.8 x 8.5 mm |
| Orientation | Portrait, USB C at the top |
| Type | Sidebar: clear strips in both side walls |
| Control | Set by the HCI ONE server over the network |
| States | Staff in, at rest, call |
| Power | PoE+ (IEEE 802.3at), one drop per door |
| Mount | Hanger plate on the two screws of a single gang box |
| Security | Hangs on the hanger plate, locked by one security screw from below |
| Numerals | 1 inch, raised 1 mm |
| Braille | Grade 2, 10 mm below the numerals |
What it needs from your network.
- A single gang box beside each door, with one PoE+ drop ending in it.
- 802.3at switch ports; passive injectors will not power it.
- The light controller on your IoT VLAN, reachable by the HCI ONE server.
- Tablets enrolled in your MDM and locked to the door sign.
The rest of the room.
Float Sidebar shows the same care team, precautions and room state as the whiteboard inside. If your doors use the 11 inch iPad, see the Float iPad Door Sign.
A smaller sign, the same door.
Tell us your unit and your room list, and we print a plate for your first door.
