Digital whiteboards · WB22

22" Interactive Digital Whiteboard

The standard patient room whiteboard. Care team, goals, schedule and precautions from the record; camera for the virtual nurse and eSitter.

Pricing comes from the HCI partner who covers your state. Sold and installed through dealers and integrators.

Size21.5 inch LCD

Resolution1920 x 1080

MountVESA 100 x 100

NetworkEthernet and WiFi

Camera5 MP

Where it goes

Built for one place in the building.

Patient room wall

What runs on it

Every HCI device runs HCI ONE and is enrolled in Engine at install, so it takes the same release, on the same day, as the rest of the building.

Builds

Most hospitals run Standard. Pro is for camera heavy rooms and for Guardian.

Build	Processor	Memory and storage	Android
Standard	Quad core Cortex A55 (RK3566)	2 GB RAM, 16 GB storage (4 GB and 32 or 64 GB optional)	Android 11
Plus	Quad core Cortex A55 (RK3568)	2 GB RAM, 16 GB storage (4 GB and 32 or 64 GB optional)	Android 11
Pro	Quad core A55 plus quad core A76 (RK3588S)	4 GB RAM, 32 GB storage (8 GB and 64 GB optional)	Android 12

Specifications

Display
Diagonal	21.5 inch LCD
Resolution	1920 x 1080
Aspect ratio	16:9
Brightness	250 nits
Contrast	800:1
Viewing angle	85 degrees all sides
Touch	10 point capacitive
Physical

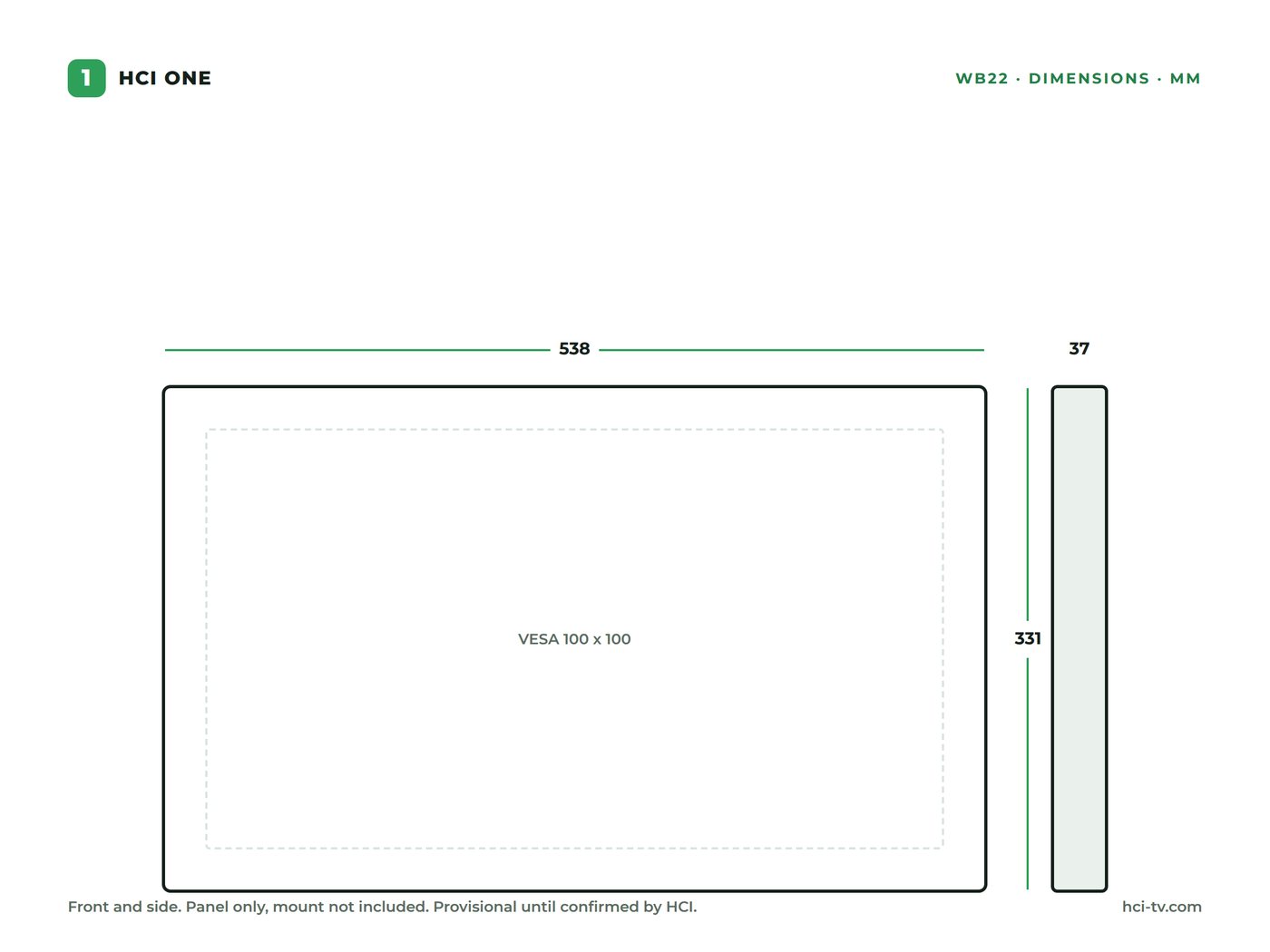

Dimensions	538 x 331 x 37 mm
Mount	VESA 100 x 100
Color	Black
Connectivity
WiFi	802.11 b/g/n; WiFi 6 on the Pro build
Ethernet	RJ45
USB	2 to 3 USB 2.0 host; USB 3.0 on Standard and above; OTG
HDMI	HDMI out; HDMI in on the Pro build
Power	DC input, 12 V 3 A adapter included
Audio and video
Camera	5 MP
Speakers	3 W x 2
Microphone	Single
Environment
Operating temperature	0 to 40 C
Certifications	CE, FCC
