Digital whiteboards · WB22L
22" Digital Whiteboard with LED Surround
A 22 inch whiteboard with the LED surround and a four microphone array. One PoE cable, precaution color on the wall.
Your quote request
WB22L
Pricing comes from the HCI partner who covers your state. Sold and installed through dealers and integrators.
Size21.5 inch LCD
Resolution1920 x 1080
MountVESA 200 x 100
NetworkEthernet with PoE
Camera5 MP
LED surroundFull color
FinishWhite or black
Where it goes
Built for one place in the building.
Patient room wallNurse station
What runs on it
The same platform as every other screen.
Every HCI device runs HCI ONE and is enrolled in Engine at install, so it takes the same release, on the same day, as the rest of the building.
The engine inside.
| Build | Processor | Memory and storage | Android |
| Standard | Quad core A72 plus quad core A53 (RK3576S) | 4 GB RAM, 32 GB storage (8 GB and 64 GB optional) | Android 14 |
Every number on the sheet.
| Display | |
| Diagonal | 21.5 inch LCD |
| Resolution | 1920 x 1080 |
| Brightness | 250 nits |
| Contrast | 3000:1 |
| Viewing angle | 89 degrees all sides |
| Touch | 10 point capacitive |
| Physical | |

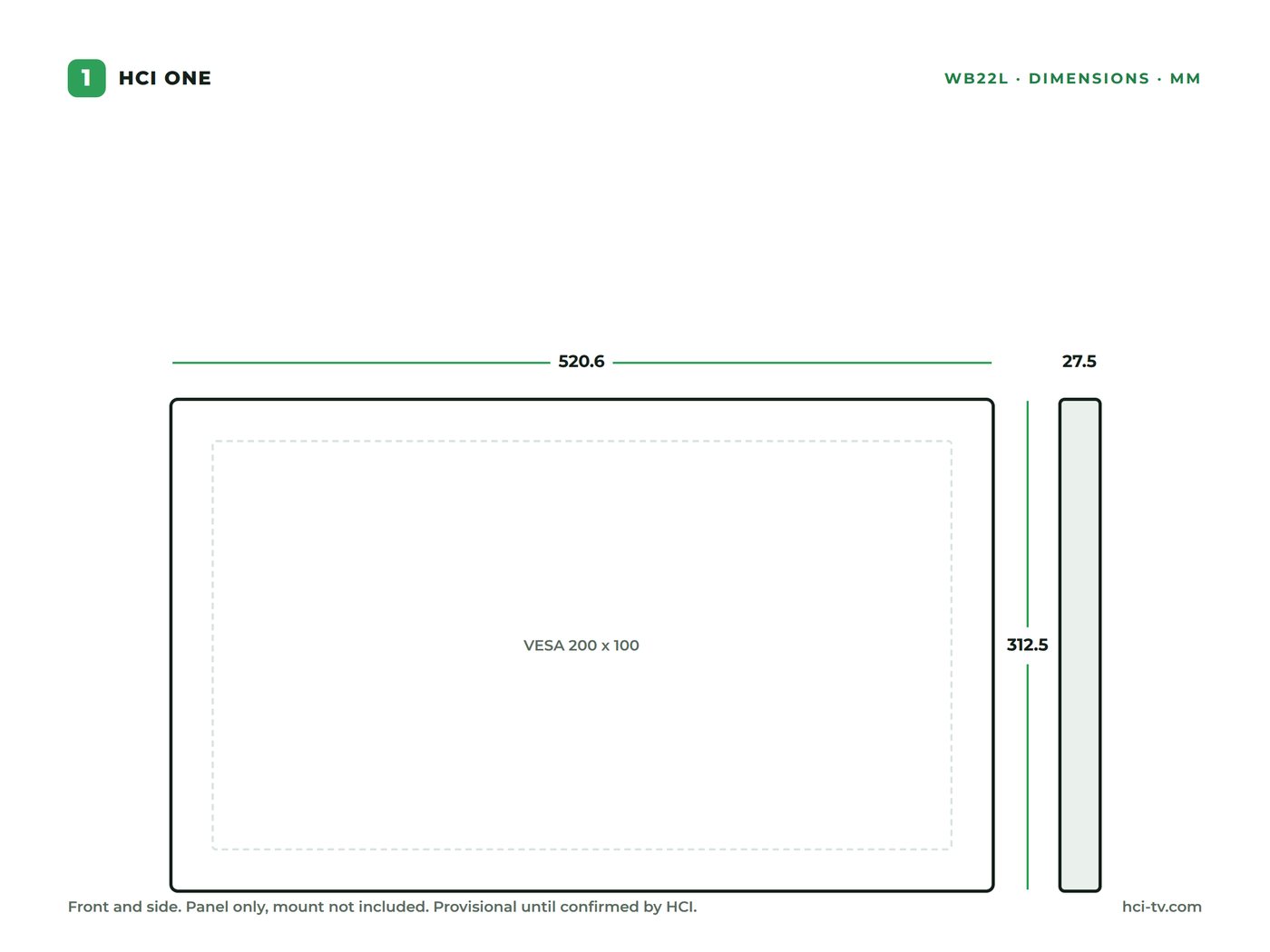

| Dimensions | 520.6 x 312.5 x 27.5 mm |
| Mount | VESA 200 x 100 |
| Color | White or black |
| LED surround | Full color RGB with marquee effects, set by the software |
| Connectivity | |
| Ethernet | Gigabit RJ45 with PoE (IEEE 802.3bt) |
| WiFi | 802.11 a/b/g/n/ac/ax (WiFi 6) |
| Bluetooth | 5.4 |
| USB | 1 x USB 2.0, 1 x USB 3.0, 1 x USB C (OTG) |
| HDMI | HDMI 2.0 in |
| Power | 12 V DC or PoE |
| Audio and video | |
| Camera | 5 MP |
| Speakers | 5 W x 2 |
| Microphone | Four microphone array with noise reduction and echo cancellation |
| NFC | Optional NXP PN7160 |
| RFID | Optional 125 kHz badge reader |
| Environment | |
| Operating temperature | 0 to 40 C |
| Certifications | CE, FCC |
For IT and biomed
What it needs from your network.
- PoE++ from the closet, one cable.
- Camera and microphones stay on the hospital network.
- Enrolled in Engine at install.
