Digital whiteboards · WB55
55" Digital Whiteboard
The unit board for a full unit. Thirty rooms at a glance from anywhere behind the station.
Your quote request
WB55
Pricing comes from the HCI partner who covers your state. Sold and installed through dealers and integrators.
Size55 inch LCD
Resolution1920 x 1080
MountVESA 400 x 400
NetworkEthernet and WiFi
Camera5 MP
FinishWhite or black
Where it goes
Built for one place in the building.
Nurse station
What runs on it
The same platform as every other screen.
Every HCI device runs HCI ONE and is enrolled in Engine at install, so it takes the same release, on the same day, as the rest of the building.
Same panel. Different engine.
Most hospitals run Standard. Pro is for camera heavy rooms and for Guardian.
| Build | Processor | Memory and storage | Android |
| Standard | Quad core Cortex A55 (RK3566) | 2 GB RAM, 16 GB storage (4 GB and 32 or 64 GB optional) | Android 11 |
| Plus | Quad core Cortex A55 (RK3568) | 2 GB RAM, 16 GB storage (4 GB and 32 or 64 GB optional) | Android 11 |
| Pro | Quad core A55 plus quad core A76 (RK3588S) | 4 GB RAM, 32 GB storage (8 GB and 64 GB optional) | Android 12 |
Every number on the sheet.
| Display | |
| Diagonal | 55 inch LCD |
| Resolution | 1920 x 1080 |
| Aspect ratio | 16:9 |
| Brightness | 300 nits |
| Contrast | 1200:1 |
| Viewing angle | 89 degrees all sides |
| Touch | 10 point capacitive |
| Physical | |

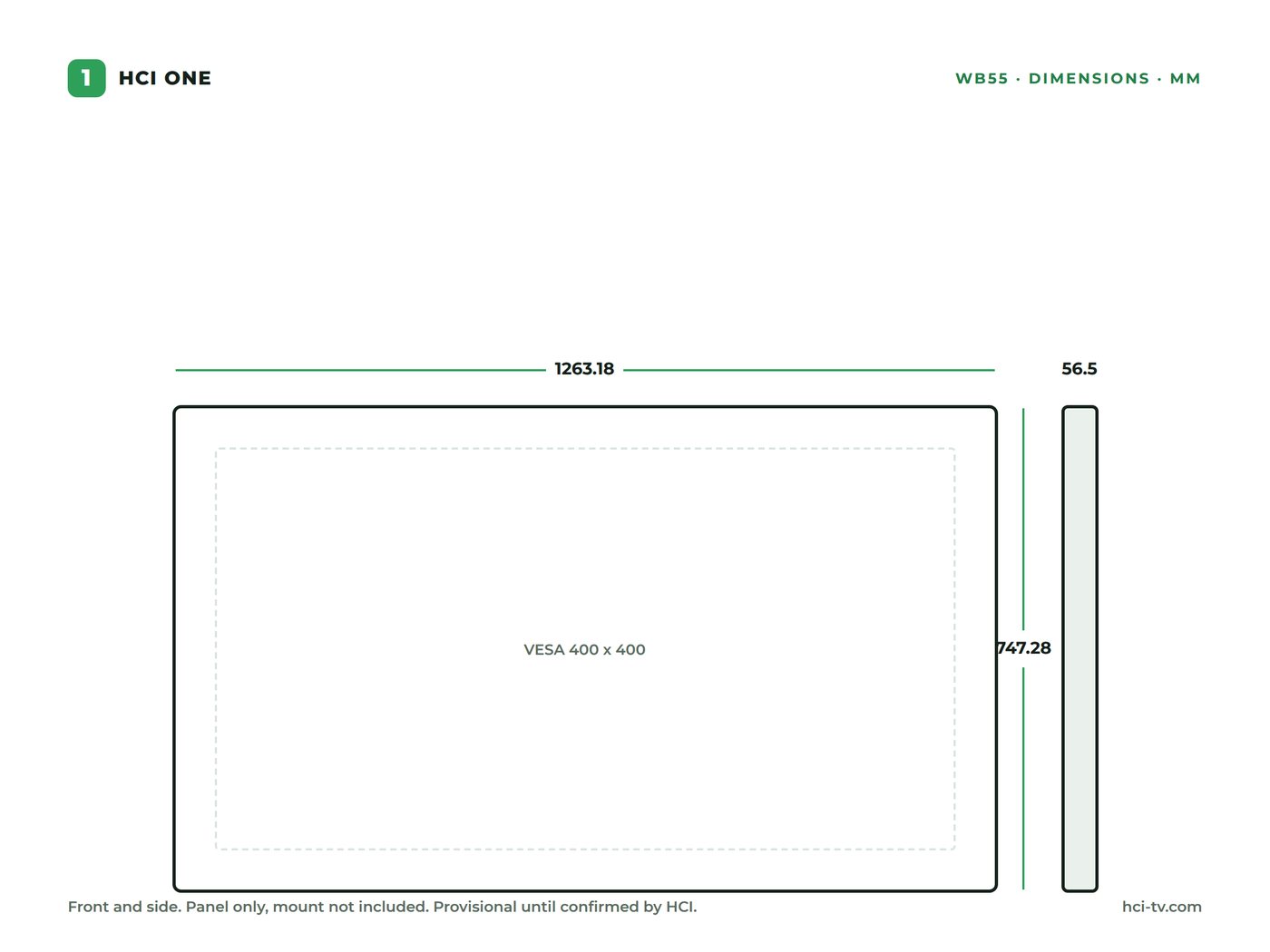

| Dimensions | 1263.18 x 747.28 x 56.5 mm |
| Mount | VESA 400 x 400 |
| Color | White or black |
| Connectivity | |
| WiFi | 802.11 b/g/n; ac or WiFi 6 on higher builds |
| Ethernet | RJ45 |
| USB | USB 2.0 and 3.0 host; USB C on the Pro build |
| HDMI | HDMI out; HDMI in on the Pro build |
| Power | DC input |
| Audio and video | |
| Camera | 5 MP |
| Speakers | 5 W x 2 |
| Microphone | Single on higher builds |
| Environment | |
| Operating temperature | 0 to 40 C |
| Certifications | CE, FCC |
For IT and biomed
What it needs from your network.
- One network drop at the station.
- Nurse call and RTLS feeds come through Engine, not the board.
- Enrolled in Engine at install.
The rest of the family.
See it running on sample data.
Four screens, one demo. Or tell us your unit and your bed count, and we build yours.
